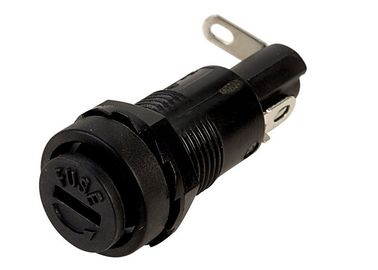

Phenolic Chassis Tube Fuse Holder R3-11B For 5x20mm Micro Glass Fuses

Large Image :  Phenolic Chassis Tube Fuse Holder R3-11B For 5x20mm Micro Glass Fuses

Product Details:

Brand Name: UCHI
Model Number: R3-11B

Payment & Shipping Terms:

Minimum Order Quantity: 500PCS
Price: Negotiable
Packaging Details: Bulk
Delivery Time: 7-10 days
Payment Terms: T/T, Western Union
Supply Ability: 2000,000 EA Monthly
Detailed Product Description
Name: Tube Fuse Holder R3-11B Fuse Size: Ø5.2x20mm
Limit Rating: 10A 250V AC Dielectric Strength: AC 1500V 1 Minute
Insulation Resistance: DC 500V 100mΩ Min. Unit Weight: 8 Gram
Mounting: On Panel Panel Thickness: Max 4.5mm





Screw Type Phenolic Panel Mount Chassis Tube Fuse Holder R3-11B For 5x20mm Micro Glass Fuses 10A 250V





Main Specifications



The FEC series have quick connect terminals and area available with a finger grip or slotted cap.

For appliances in unattended use
Low profile fuse holder with insulation walls
Panel Mount
IP40 Rated
Quick connect terminals



Fuse Size--Ø5.2x20mm

Maximum Rating--10A 250V AC

Dielectric Strength--AC 1500V 1 Minute

Insulation Resistance--DC 500V 100mΩ Min

A-Bayonet Type   B-Screw Type







Applications


- Household appliances
- Medical equipment





Size (mm)

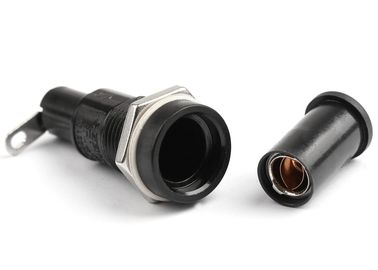

Actual image







Description



Meets the new requirements of IEC 60335-1 for appliances in unattended
use (clause 30.2.3). This includes the enhanced requirements of
glow wire tests acc. to IEC 60695-2-12 and -13.
- Compact design
- Heading with fingergrip and slotted available
- Degree of protection IP 67 available
- White color available on request





Derating Curves







Panel Mounting


CATEGORIES OF PROTECTION AGAINST ELECTRIC SHOCK,PC1: No integral protection against electric shock. If required, designers must provide additional protection against electric shock on equipment.,PC2: With integral protection against electric shock. Fuse-holders shall have live parts inaccessible to IEC529 standard test finger, when fully assembled, without fuse carrier or fuse in place and when fuse carrier, with fuse is being inserted or withdrawn.,PC3: With integral protection against electric shock. Fuse-holders shall have live parts inaccessible to IEC529 1mm diameter rigid test wire when fully assembled, without fuse carrier or fuse in place and when fuse carrier, with fuse is being inserted or withdrawn.





Attribute Value
Current Rating 10 A
Voltage Rating 250V ac/dc
Cap Style Finger Grip
Compatible Fuse Length 20mm
Compatible Fuse Diameter 5.2mm
Compatible Fuse Dimensions 5.2 (Dia.) x 20mm
Series R3-11
Protection Category PC2
Body Material Thermoset
Contact Material Tin Plated Copper Alloy
Terminal Type Quick Connect
Standards Met CSA C22.2 No. 4248.1, CULus Recognised,, IEC 60127-6, UL 4248-1, VDE
