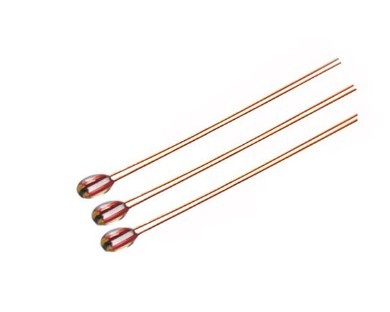

MF51 Temperature Measurement Radial Glass Hermetic Encapsulation NTC 100K Thermistor 3950

MF51 Temperature Measurement Radial Glass Hermetic Encapsulation NTC 100K Thermistor 3950
MF51 Temperature Measurement Radial Glass Hermetic Encapsulation NTC 100K Thermistor 3950 MF51 Temperature Measurement Radial Glass Hermetic Encapsulation NTC 100K Thermistor 3950 MF51 Temperature Measurement Radial Glass Hermetic Encapsulation NTC 100K Thermistor 3950 MF51 Temperature Measurement Radial Glass Hermetic Encapsulation NTC 100K Thermistor 3950 MF51 Temperature Measurement Radial Glass Hermetic Encapsulation NTC 100K Thermistor 3950 MF51 Temperature Measurement Radial Glass Hermetic Encapsulation NTC 100K Thermistor 3950

Large Image :  MF51 Temperature Measurement Radial Glass Hermetic Encapsulation NTC 100K Thermistor 3950 Get Best Price

Product Details:
Place of Origin: CHINA
Brand Name: SHIHENG
Certification: ROHS etc.
Model Number: MF51
Payment & Shipping Terms:
Minimum Order Quantity: 1000PCS
Price: Negotiable
Packaging Details: Bulk
Delivery Time: 2 weeks
Payment Terms: T/T, Western Union, MoneyGram,Paypal
Supply Ability: 50 Million Pieces per year
Detailed Product Description
Type: Glass Hermetic Encapsulation NTC Thermistor 100K 3950 Annual Production Capacity: 50 Million Pieces
R25: 2K~1500K Ohm R25 Tolerance: ±1%, ±2%, ±3%, ±5% And ±10%
Operating Temperature Range: -40ºC To +250ºC Dissi. Coef.: 0.75/0.9/1.4mW/C
Model: MF51-C,MF51-B,MF51-A Thermal Constant: 5sec/7sec/14sec
Pmax: 15mW/35mW/50mW Operation Standard: Q/320115SHD13-2015
High Light:

power ntc thermistor

,

ntc thermistor assembly



MF51 Temperature Measurement Radial Glass Hermetic Encapsulation NTC Thermistor 100K 3950





PDF Specification File Download Link : MF51 Temperature Measurement Radial Glass Hermetic...





Specifications



  •  R25(Ω):2K~1500K
  •  Use:Air-Conditioner. Heating Apparatus
  •  Glass hermetic encapsulation with high resistance to humid environments
  •  Wide operating temperature range
  •  High stability and performance in harsh environmental conditions
  •  Fast response time
  •  RoHS Compliant



The NTC Chip hermetically sealed in a glass encapsulation package



MF51 Temperature Measurement Radial Glass Hermetic Encapsulation NTC 100K Thermistor 3950 0





Features



  • Hermetically sealed glass package
  • Proven Stability and Reliability
  • Available in ±1%, ±2%, ±3%, ±5% and ±10% tolerance @ +25ºC
  • Fast time response
  • Low cost
  • Temperature range -40ºC to +250ºC





Application



  1. Air conditioning systems
  2. Refrigeration control
  3. Assembly into probes for a wide variety of applications
  4. In environments where thermal shock and humidity are present
  5. Hot water boiler systems
  6. Sensor for engine temperature control





Dimension (mm)



MF51 Temperature Measurement Radial Glass Hermetic Encapsulation NTC 100K Thermistor 3950 1

Part number D H L d
MF51-A 2.0±0.2 3.8±0.5 ≥40 0.25±0.02
MF51-B 1.6±0.2 3.2±0.5 ≥60 0.25±0.02
MF51-C 1.2±0.2 2.4±0.5 ≤60 0.25±0.02





Performance Specs



Part number

Dissi.Coef.

mW/℃

Thermal time constant

sec

Pmax

mW

MF51-A ≈1.4 ≈14 50
MF51-B ≈0.9 ≈7 35
MF51-C ≈0.75 ≈5 15





Reliability Test



Reliability Tests Standard Test Condition Delta R
Storage in Dry Heat  IEC 60068-2-2 Storage temperature: +250°C
Duration: 1000 hours
< 3%
Storage in Damp Heat IEC 60068-2-3

Temperature of air is 50°C & RH 95%

Duration: 56 days.

< 2%
Rapid Temperature Cycling IEC 60068-2-14 Lower Test Temperature -55°C
Upper Test Temperature +200°C
Number of Cycles 1000
< 2%





Related products info



MF51 Temperature Measurement Radial Glass Hermetic Encapsulation NTC 100K Thermistor 3950 2





Manufacture Process



MF51 Temperature Measurement Radial Glass Hermetic Encapsulation NTC 100K Thermistor 3950 3







Workshop of high quality and high performance NTC Thermistor



We have the unique process and leader core technology with proprietary intellectual property rights of ceramic powder equipment,made of chips,high performance NTC Automatic batch production.
We have more than 12 series of high performance NTC thermistors automatic production line,products have the advantages of large production,high quality,good coherence,high reliability,besides it can be made of many kinds of NTC temperature sensors,it also can be supplied to other factories of NTC sensors,and exported in large quantities to overseas.
